Place of Origin : Shanghai, China
Brand Name : Daesum
MOQ : 1
Voltage : 220 V, 415 V, 380 V, 440V, 400V
Weight : 1000 KG
Filling Volume : 20L, 50L, 200L, 1000L
Filling capacity : 6-100bph
Filling accuracy : 0.1-0.2% FS
Division value : 100g
Ambient temperature : -10℃~55℃
Ex-proof level : IIBT4
Protection level : better than IP55
Product temperature : below 270℃
Air supply pressure : 0.4-0.6Mpa
Filling nozzle : 1
Core components : Motor, PLC, Gear, Bearing, Gearbox, Sensor
Weighing platform height : 10cm
Roller height : 10cm

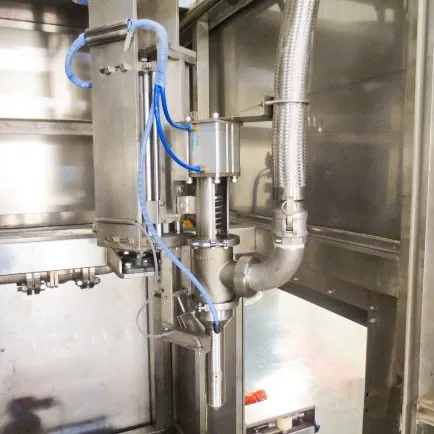

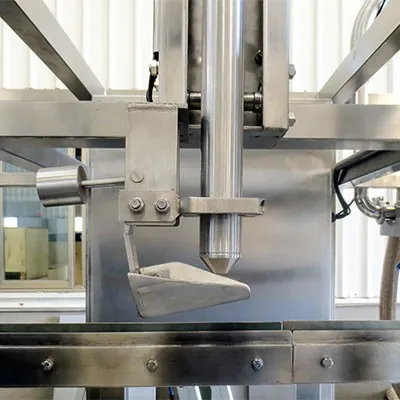

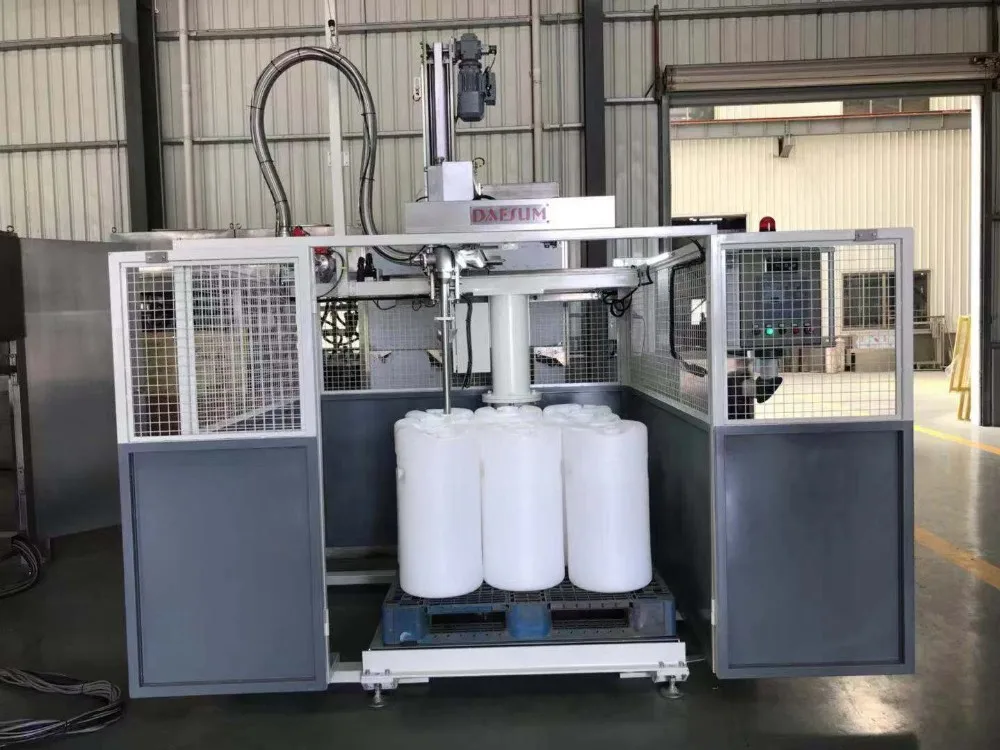

The filling nozzle uses internal-type metal-sealed bottom valve and compression-type graphite packing shaft seal, which ensures zero dripping and high temperature endurance. Besides, the filling nozzle employs casing insulation that could inlet steam or hot oil for heat tracing.
In addition, the filling machine has a safety interlock system. When the drum is not in the right position or the filling nozzle does not go through the bunghole, the filling valve would not open or start filling; when the filling telescopic pipe touches the drum surface, it would retract automatically.
TRANSCELL stainless steel nitrogen purging sensors are embedded with the weighing platform on the filling stations. UNIPLUS instruments are installed with the control cabinets. The weighing platforms keep low with only 10cm high, which also endure high temperature.

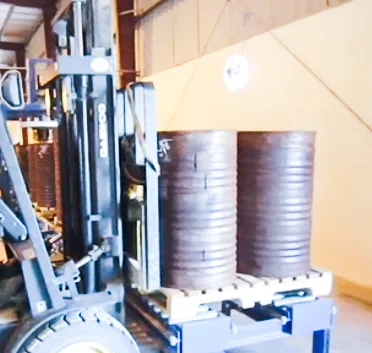

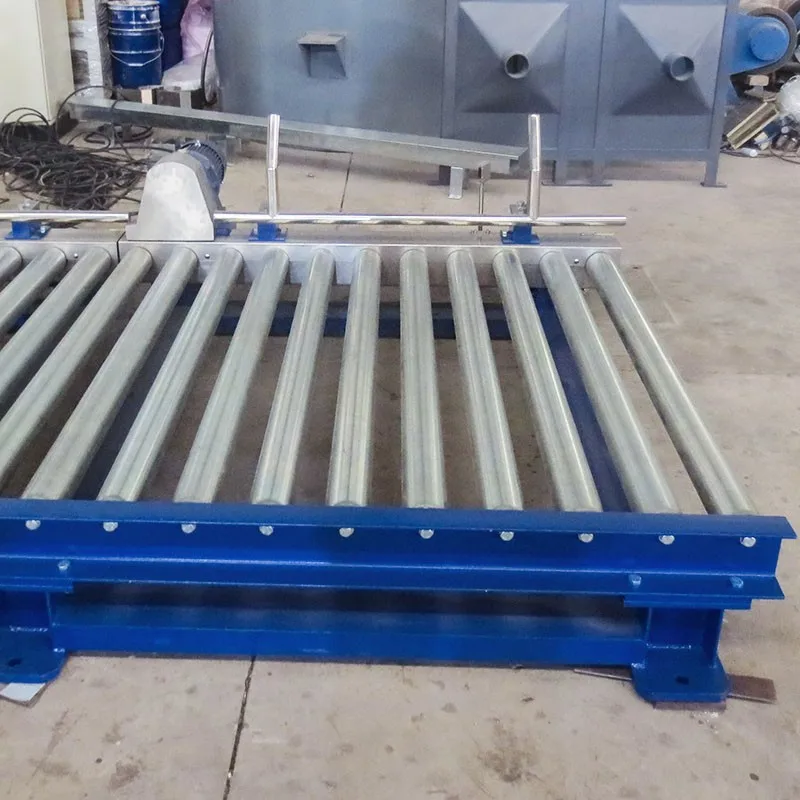

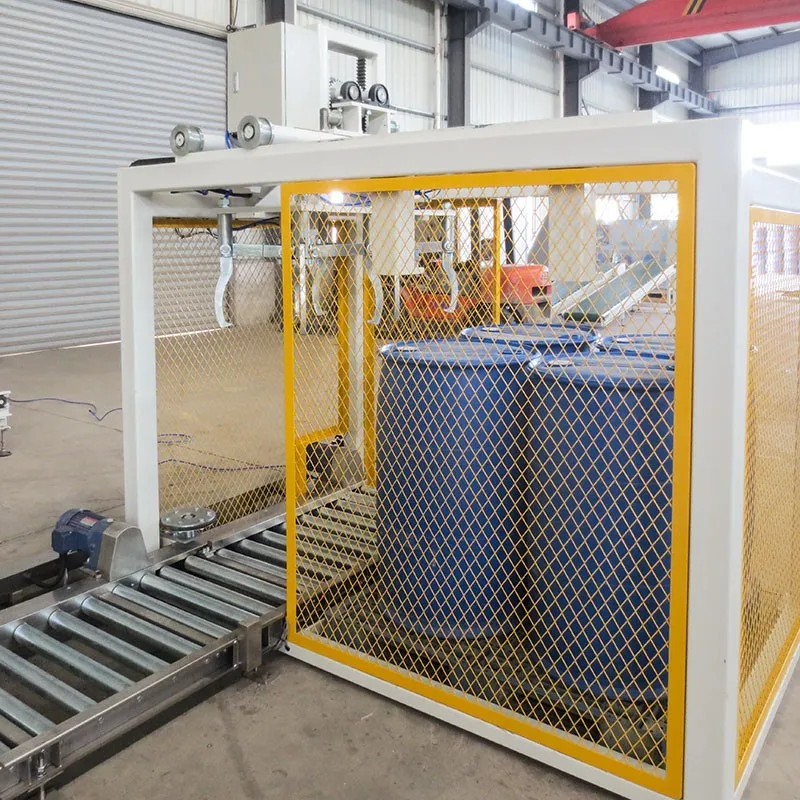

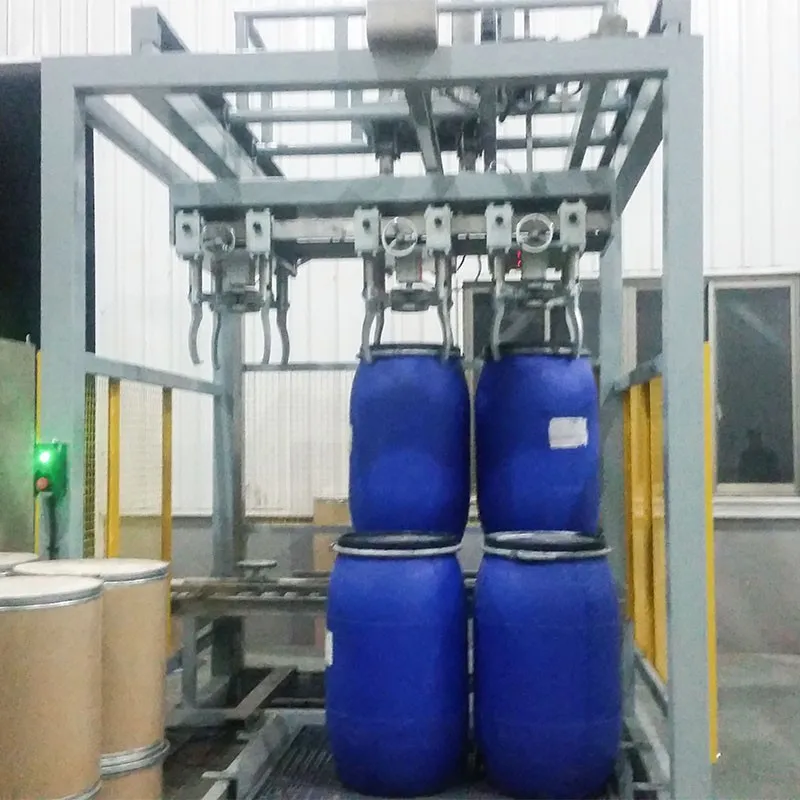

The filling line is assessed with a palletizing system, which facilitates the completed drums discharge. After arriving the palletizing position, the completed drums are snatched up by the pallet gripper two at a time and located on the pallet. When the two subsequent competed drums arrive at the palletizing position, the pallet gripper would go back and repeat the transfer action. The pallet with completed drums would move to the wait-shovel roller way waiting for forklift, in the meanwhile the pallet magazine would release an empty pallet. The pallitizer is operated repeatedly.
Not applicable in this case.
Not applicable in this case.
In 2018, DAESUM manufactured 3 automatic visual positioning filling lines for Guangdong Qingyuan Company, which helps Qingyuan Chemicals create billions of value every year. Till now, all the 3 lines are completely installed and working in good condition without any machinery and safety matters.
|
|
